Products
NeuraMesh
NeuraMesh offers a rapid deployment connectivity solution as part of the Neura-Networks platform.
NeuraMesh is ideal for locations where wired backbone infrastructure is challenging or non-existent. The modules deploy rapidly and can be installed for temporary or permanent systems. The NeuraMesh offers seamless connectivity to the Neura-Networks platform, able to connect to any Leaky Feeder or Fiber Network. Any authorized wireless or wired Ethernet end-point device can be enabled to connect via this infrastructure.
For more details on our product, or to request the product datasheet, please click here.
Compatibility
- Offers connectivity to any standard 2.4/5GHz Wireless LAN client
- Self-Healing Mesh Network
- Autonomous routing of network traffic
Applications
- Wi-Fi Connectivity to back- haul network
- Voice-over-IP
- Telemetry (PLCs, Modbus- TCP, etc)
- Environmental Monitoring
Infrastructure
- NeuraMesh™ Mesh Network provides connectivity where no infrastructure can be installed
- Can interface to any existing Leaky Feeder Infrastructure
- Can interface to existing Fiber Network Switches
- Redundant Configurations
The mesh network is a fully autonomous, redundant, self-healing network offering wired and wireless interconnectivity. NeuraMesh’s rapid roaming ensures mobile wireless subscribers remain connected when moving through the mesh network.
Remote management and diagnostics of NeuraMesh™ is done through the interactive user-friendly NeuraNMS software solution.

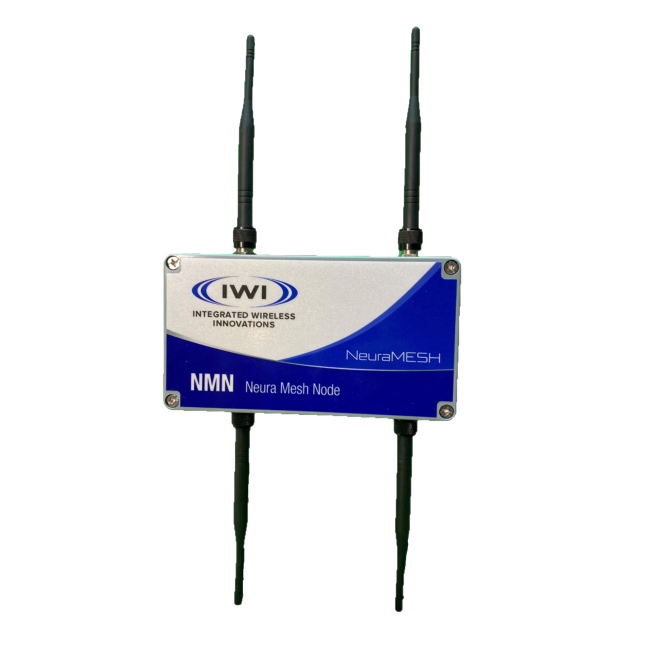

NeuraMesh Gateway/Node
- Fiber or Copper interface options
- Fully compliant with WLAN 802.11 a/b/g/n/ac.
- Field replaceable transceiver modules for seamless upgrading in the field
- Robust polycarbonate enclosure
- Antenna selection options available for custom implementations

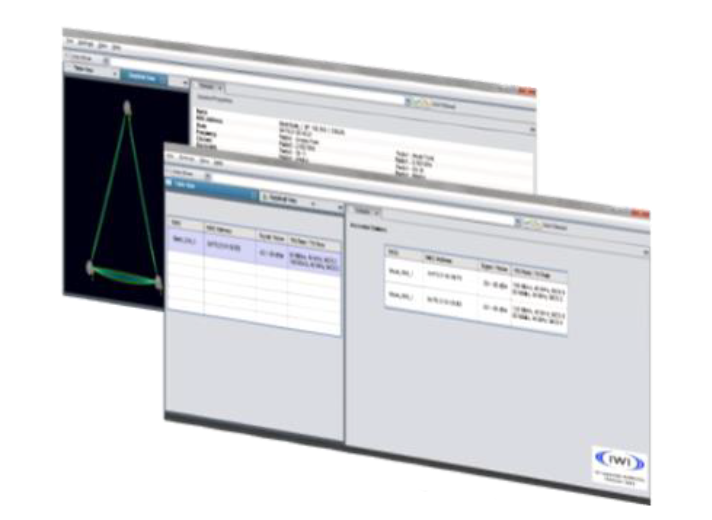

NeuraMesh – NMS
- Interactive user-friendly GUI provides quick overview of the network status
- Single point management of mesh network
- Diagnostics such as signal levels, link rate and adjacent nodes available for each mesh node
Specifications
| RF Parameters | ||
|---|---|---|
| Frequency Ranges | 2.412-2.472GHz | U-NII-1: 5.150 – 5.250 GHz U-NII-2A: 5.250 – 5.350 GHz U-NII-2C: 5.470 – 5.725 GHz U-NII-3: 5.725 – 5.825 GHz |
| Receiver Sensitivity | -96 dBm to -70 dBm | -93 dBm to -66 dBm |
| Radio Technology | 2×2 MIMO OFDM | |
| Modulation Techniques | OFDM: BPSK, QPSK, 16-QAM, 64-QAM | |
| Transmit Power (per chain) | 3dBm (Max) | 20dBm (Max) |
| Power, Environmental & Physical | |
|---|---|
| Power | 12 VDC /PoE 802.11af/at |
| Power Consumption | 12 W Max |
| Enclosure | IP54 category, Polycarbonate |
| Operating Temperature | -20°C to +70°C (-4°F to +160°F) |
| Humidity | 5%-95% |
| Dimensions (H x W x D) | 8.7”H x 4.7”W x 3.6”D (22.0H x 12.0W x 9.1D cm) |
| Weight | 4.9 lb (2.2 kg) |
Remote Management
- Remote Network Monitoring allows for predictive maintenance to discover potential issues
Turnkey Solutions
- Complete turn-key solutions are offered from concept to final sign-off
Technical Support
24/7 support is offered for:
- Maintenance
- Product/System Testing
- Repair Services
Get in touch today!
For more information on any of our products or services please contact us.
